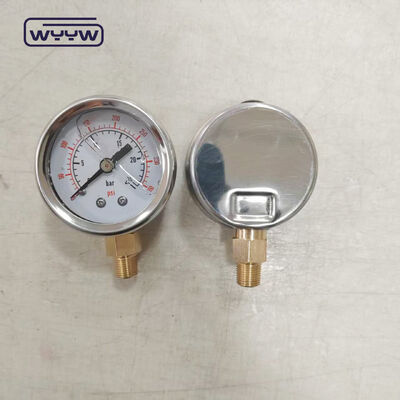

50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection

200 عدد
MOQ
Depends on total quantity
قیمت
50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
گارانتی: 1 سال
پشتیبانی سفارشی: OEM، ODM
اندازه: 2′′ ((50 میلی متر)
مواد: فولاد ضد زنگ
محدوده فشار: 0 ~ 100 مگاپاسکال، نوار، بار، و غیره
روغن: گلیسیرین یا سیلیکون
مزایا: ضد رطوبت، مقاوم در برابر سایش، سازگار با محیط زیست، با دوام بالا
اطلاعات اولیه
محل منبع: چینگدائو، چین
نام تجاری: WYYW
گواهی: CE & ISO9001
شماره مدل: YTN-50
پرداخت
جزئیات بسته بندی: کیسه پلاستیکی داخلی، کارتن صادراتی به بیرون. پالت اختیاری است.
زمان تحویل: 30 روز
شرایط پرداخت: TT,LC.Alipay.Western Union
قابلیت ارائه: 30-50 هزار در ماه
توضیحات محصول
Industrial 50mm SS304 Case Oil Filled Pressure Gauge 25bar Bottom Entry 1/4"NPT
50mm SS304 case oil filled pressure gauge 25bar bottom entry 1/4"NPT. Liquid filled pressure gauge 50mm bottom 1/4" NPT OEM pressure meter.
50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 0
Product Specifications
Name Glycerine pressure gauge
Dial Size 50mm (custom sizes available)
Case Stainless steel
Pressure Units Mpa, bar, psi, kg/cm² (optional)
Ring Gasket under the window
Movement Brass
Socket Brass
Bourdon Tube Phosphor Bronze
Dial Plate and Pointer Aluminum
Window Plastic
Connection Sizes 1/8" for 1.5"; 1/4" for 2", 2.5" case; 1/2" for 4", 6"
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom
Accuracy 1.5"(40mm), 2"(50mm), 2.5"(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure Limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 1 50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 2 50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 3
Product Applications
  • Exposure to harsh outdoor environments and extreme operational conditions
  • Applications involving significant vibrations and pressure fluctuations
  • Equipment used in hydraulics, pressure washing, oil extraction, pumps, compressors, and various process systems
50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 4
Company Information

Qingdao DaZeFengYang is a professional manufacturer of pressure gauges and hardware tools, and a proud member of the China National Hardware Association. With the support of our highly skilled technical team, we strive to ensure that our pressure gauges meet both GB/T (Chinese Standards) and international quality standards.

We are certified with ISO9001 and CE for all our products, which include pressure gauges, gas regulators, cutting torches, welding torches, and more. Over the years, we have developed an impressive range of both specialized and standard products, all offered at competitive prices and with prompt delivery.

Our efficient sales and after-sales service make us an attractive option for customers worldwide, particularly distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia. We warmly invite friends and partners to reach out to us via phone or email, or to visit our company. We look forward to building a successful future together!

50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 5 50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 6 50mm Stainless Steel Bottom Entry Liquid Filled Pressure Gauge with 1/4 NPT Connection 7
Advantages
Advanced Equipment and Professional Technology
We are committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
Best After-sales Service
Our company provides excellent after-sale service with the goal of establishing long-term trade cooperation.
Serious Inspection Procedure with Excellent Quality
All our pressure gauges undergo 100% inspection and we have passed ISO9001 and UL certification.
Quick Delivery
We provide timely delivery to always satisfy customer needs.
Convenient Purchase and Cost Savings
As a skilled manufacturer, we offer convenient purchasing with high-quality products at reasonable prices.
OEM Orders
We have extensive experience with OEM orders from renowned companies in USA and European markets.
